D&R WEBSTATION-USB BROADCAST MIXER Аналоговый микшерный пульт

Inputs:​

• Mic input:
  • Type: Balanced
  • Impedance: 2 kOhm
  • Connector: XLR
  • Phantom Power: 48V

• Noise level:

  • A-weighted: -128 dBr

• Sensitivity:

  • Minimum: -70 dB

  • Maximum: 0 dB

• Insert:

  • Type: Unbalanced

  • Impedance: 10 kOhm

  • Level: -10 dBV

• Line inputs:

  • Type: Unbalanced

  • Impedance: 10 kOhm

  • Connector: Cinch

• Gain:

  • Range: 40 dB

• USB:

  • Compatibility: Fully compliant with USB 2.0

  • Mode: Playback and Record

  • Inputs: 3x Stereo

  • Outputs: 3x Stereo

Additional features:​

• Frequency response:

  • Range: 10 Hz - 60,000 Hz

• Distortion:

  • Maximum: < 0.01% at 1 kHz

• GPO/Mic ON:

  • Type: Opto FETS

  • Voltage: 24V

  • Maximum Current: 50 mA

• LED bars:

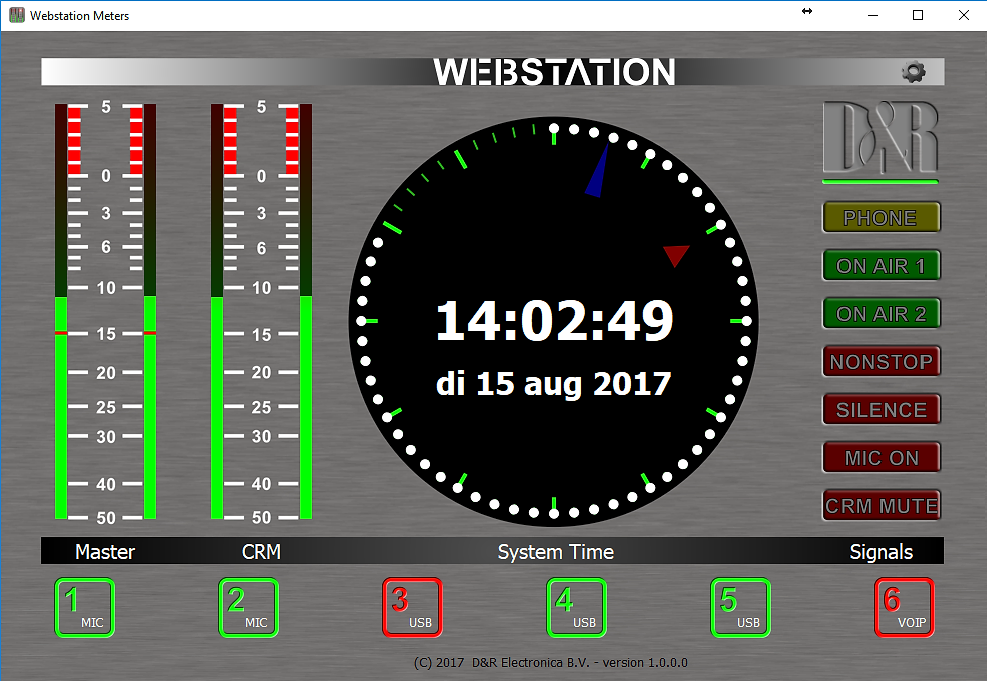

  • Display: software meter application

Outputs:​

• Left/Right:

  • Level: 0 dBu unbalanced

  • Connector: Cinch

• CRM:

  • Level: 0 dBu unbalanced

  • Connector: Cinch

• Headphone:

  • Impedance: 32-400 Ohm

  • Connector: Jack

• USB out:

  • Channels: Program/Voice Track/VoIP

Equalizer:​

• High:

  • Frequency: 12 kHz

  • Adjustment Range: + / -12 dB

  • Type: Shelving

• Low:

  • Frequency: 60 Hz

  • Adjustment Range: + / -12 dB

  • Type: Shelving

​​

Control software:

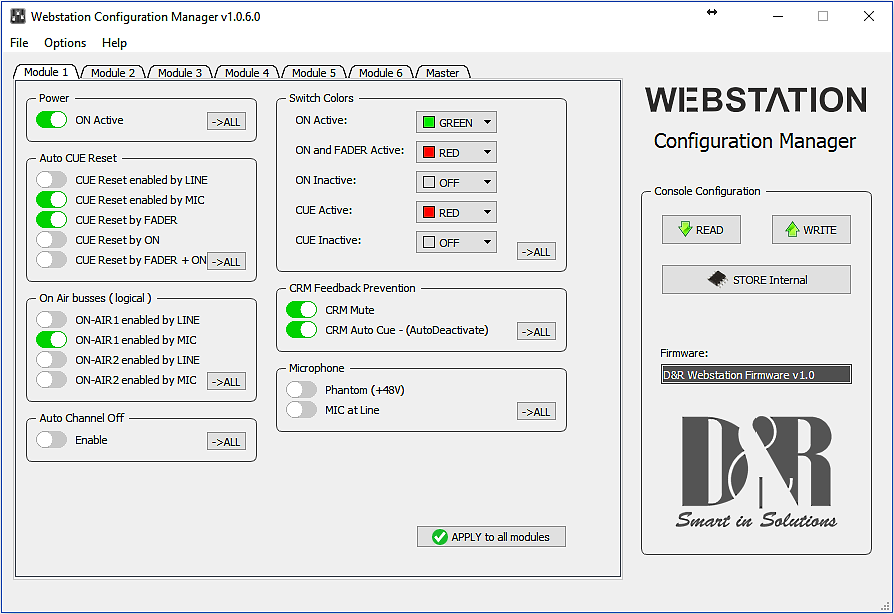

​A software program is included in the delivery for programming the Control section. The Webstation virtual keyboard mapper allows for easy configuration of the control section and internal mixer settings.

Dimensions:​

• Width (Left-Right): 350 mm

• Depth (Front-Back): 315 mm

• Height: Adjustable from 30 mm to 90 mm

• Front panel thickness: 2 mm

• Radius corners: 20 mm

• Weight: 8 kg

• Drop through hole: 320 x 295 mm

EAN code: 7436917138155
